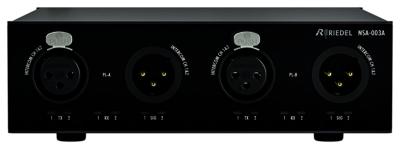

Dual Party Line (2-Wire) - Audio interface boxthat enables seamless integration of third-party legacy 2-wire partylines into Artist and Bolero systems via SMPTE 2110.

•     2-Wire Analog Intercom Device w/ Auto Echo Cancelling
•     2 x 2-Wire: Clearcom Mode / RTS Mode 1 or 2 PL(s)
•     1 x Stereo USB-Audio In/Out, 3 x GPIOs

Quad In (Line, AES3) - Classical small form factor device with 4x analog (Mic/Line) & digital (AES3) inputs for applications where small portions of inputs with flexible connection variations must be distributed over a wider area.

•     4 x Universal Inputs (MIC/Line & AES3)
•     1 x Stereo USB-Audio In/Out

Quad Out (Line, AES3) - Classical small form factor device with 4x analog Line/digital (AES3) outputs for applications where small portions of outputs with flexible connection variations must be distributed over a wider area.

• 4 x Universal Outputs (Line & AES3)
• 1 x Stereo USB-Audio In/Out

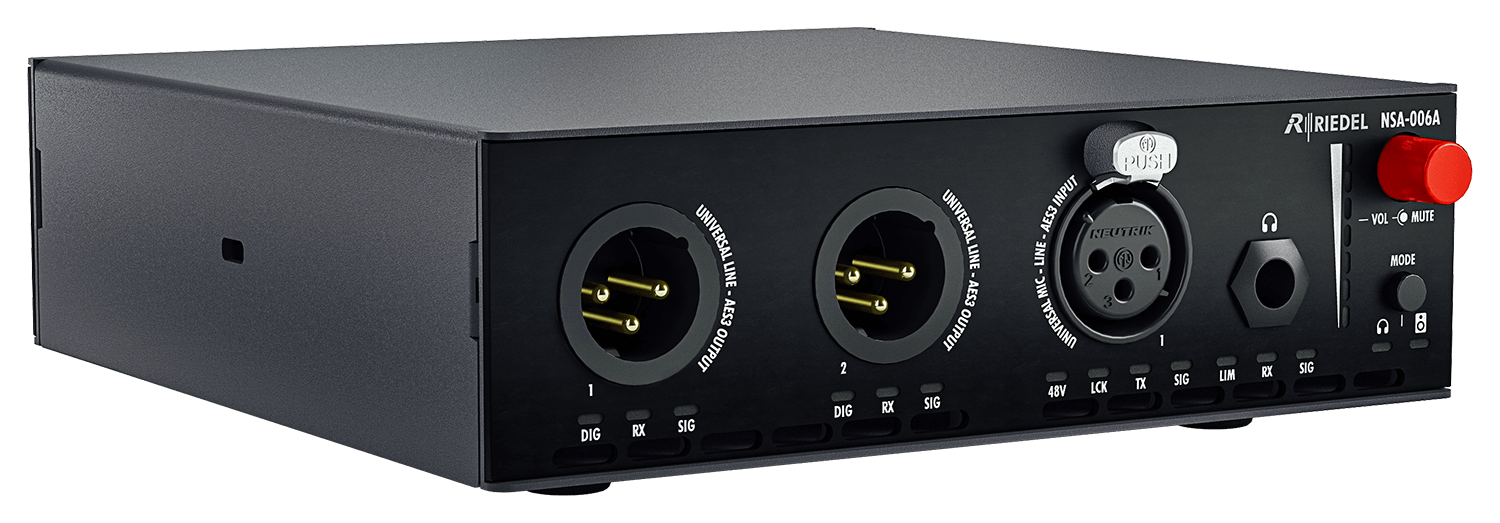

Workplace (Line, AES3) - Compact all-in-one interface solution designed to meet all audio needs of a media workplace, including Mic-Pre, HP-Out, and stereo speakers.

• 1 x Universal Input w/ Side-Tone mix to Headphones
• 1 x Headphones Output w/ volume rotary & LED-Bar
• 2 x Universal Outputs, SPK volume rotary, SPK Mute
• 1 x Stereo USB-Audio In/Out, 3 x GPIOs

Dual In/Out (4-Wire) I/O Box - SMPTE 2110 audio interface that features 2 inputs and 2 outputs in broadcast quality and can also function as a classic dual analog or digital 4-wire device for Artist and Bolero intercom systems.

• 2 x Universal Inputs (MIC/Line & AES3), 2 x Universal Outputs (Line & AES3)

• 1 x Stereo USB-Audio In/Out, 3 x GPIOs

GPIO - NSA-010C is a network based GPIO Interface. It can work in integrated Artist mode or in
standalone mode where 3rd party connection is via NMOS IS-07.

• 16 x GPIs, 16 x GPOs, 2 x Control Voltage Inputs, 2 x Control Voltage Outputs (phoenix connectors)

• 1 x Ethernet, 2 x EtherCON ports supporting in-band and out-band management for control data redundancy
