StageLink™

Smart Edge Devices

In the ever-evolving world of live production, AV professionals demand solutions that simplify complexity and drive efficiency. The Riedel StageLink family of smart edge devices answers this call with a sleek, purpose-built design, robust functionality, and transformative capabilities that enable flexible decentralized signal distribution. These compact, rugged I/O boxes for seamless network streaming can be placed anywhere in your event or facility to flexibly capture and distribute signals through a generic IP network.

The first generation of StageLink edge devices is designed to enhance IP-based audio and intercom workflows with unparalleled flexibility, reliability, and advanced features tailored to the requirements of broadcast, live event, and studio environments. Unlike traditional setups that rely on expensive and inflexible specialized cabling for each signal type, StageLink edge devices utilize standard network components to establish a decentralized network. Whether connecting microphones, intercom or GPIO devices (or any other audio-enabled device), StageLink transmits your audio and control data signals via IP and based on open standards, while eliminating the complexities of IP configurations and the hassles of analog systems.

  • Compact Size : 1 RU hHeight / 1/3 19” Wwidth / 151 mm Ddepth (housing)
  • SMPTE 2022-7 Redundancy : In-band and Out-of-band managementSeparated network interfaces for SMPTE 2022-7 stream redundancy
  • Flexible Device Management Options : In-band and out-of-band management
  • IP Centric : SMPTE 2110-30 & 31, NMOS IS-04, IS-05, IS-07 & IS-08, Sstatic IP and DHCP support
  • Flexible Routing : Manual rRouting or via NMOS IS-08 , uUp to 16 cChannels / 16 Sstreams, iInternal port to port routing
  • Network Daisy-Chaining : Single ended or ring topolgy (RSTP supporting network switches required)
  • Identification/Localization : Identify and localize the device or specific ports by blinking LEDs
  • Administration Login : Definable permission restrictions for operational uUsers
  • Power Supply Redundancy : Dual PoE on mMedia Pports
  • Fanless Operation : In controlled environments (< 30°C) , uUp to 50°C in extreme situations with fan support
  • Versatile mounting options : detachable rubber feet, stackable bumper jacket, uUnder desk and wall mount , 19” Rack mounting via rack shelf , VESA (100 mm / M4) mounting , Kensington Lock slot

NSA-003A

Dual Partyline (2-Wire) - Audio interface boxthat enables seamless integration of third-party legacy 2-wire partylines into Artist and Bolero systems via SMPTE 2110.

  • 2-Wire Analog Intercom Device w/ Auto Echo Cancelling

  • 2 x 2-Wire: Clearcom Mode / RTS Mode 1 or 2 PL(s)

  • 1 x Stereo USB-Audio In/Out, 3 x GPIOs

NSA-004A

Quad In (Line, AES3) -  Classical small form factor device with 4x analog (Mic/Line) & digital (AES3) inputs for applications where small portions of inputs with flexible connection variations must be distributed over a wider area.

  • 4 x Universal Inputs (MIC/Line & AES3)

  • 1 x Stereo USB-Audio In/Out

NSA-005A

Quad Out (Line, AES3) - Classical small form factor device with 4x analog Line/digital (AES3) outputs for applications where small portions of outputs with flexible connection variations must be distributed over a wider area.

  • 4 x Universal Outputs (Line & AES3)

  • 1 x Stereo USB-Audio In/Out

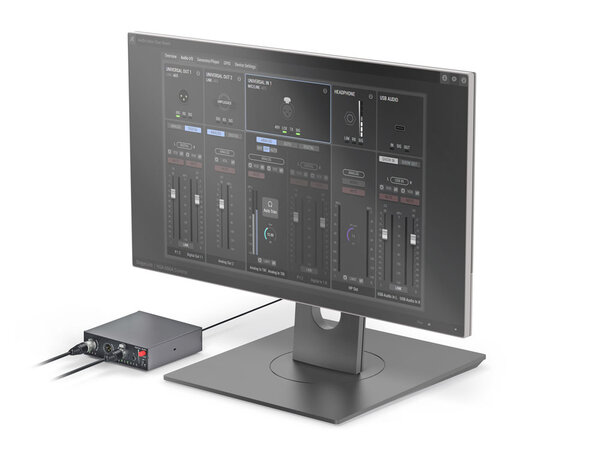

NSA-006A

Workplace (Line, AES3) -  Compact all-in-one interface solution designed to meet all audio needs of a media workplace, including Mic-Pre, HP-Out, and stereo speakers.

  • 1 x Universal Input (MIC/Line & AES3)

  • 1 x Headphones Output w/ volume rotary & LED-Bar

  • 2 x Universal Outputs (Line & AES3)

  • 1 x Stereo USB-Audio In/Out, 3 x GPIOs

NSA-007A

Dual In/Out (4-Wire) -  SMPTE 2110 audio interface that features 2 inputs and 2 outputs in broadcast quality and can also function as a classic dual analog or digital 4-wire device for Artist and Bolero intercom systems.

  • 2 x Universal Inputs (MIC/Line & AES3), 2 x Universal Outputs (Line & AES3)

  • 1 x Stereo USB-Audio In/Out, 3 x GPIOs

NSA-010C

GPIO - NSA-010C is a network based GPIO Interface. It can work in integrated Artist mode or in
standalone mode where 3rd party connection is via NMOS IS-07.

  • 16 x GPIs, 16 x GPOs, 2 x Control Voltage Inputs, 2 x Control Voltage Outputs (phoenix connectors)

  • 1 x Ethernet, 2 x EtherCON ports supporting in-band and out-band management for control data redundancy

Interfaces

NSA-002A

  • Handles bi-directional signal conversion between analog signals and AES67.
  • Plug-and-play device with multiple mounting options.
  • Connects Bolero wireless intercom system to any 4-Wire Analog.
  • Power is provided internally or via PoE.
  • Convenient LEDs indicate system status.
