Interfaces
Interfaces
Intelligent and seamless interfacing to the outside world is the key to success in many intercom applications.
The Artist platform is an open world of communications. Dedicated interface solutions let you communicate with telephones, digital and analog partylines, camera intercoms, 2-way radios and other analog and digital systems.
Panel & Matrix Interfaces
PMX-2004 SFP Panel Multiplexer
- PMX-Series panel multiplexers are used to remotely connect intercom panels from Artist matrix.
- Supports up to four panels (eight for PMX-2008) via fibre link.
- Distance capabilities depend on SFP module (Single- and Multi-Mode): Up to 2 km (1.2 miles).
- Cost-effective solution.
- Minimizes setup time.
CPX-AVB AVB-Expansion Card for Artist 1100er Control Panels
- CPX-AVB interface card integrates Artist-1100 series OLED panels into AVB networks.
- Converts control panel into an AVB enabled device.
- Converts 2 Artist ports to AVB network and vice versa.
FBI Fiber Interface Adapter
- Converts Artist panel port from CAT5 to fiber bidirectionally.
- Enables long-distance operation of Artist control panels.
- Supports bidirectional transmission of AES3 signals.
- Realized distances up to 2 km (1.24 miles) using duplex Multi-Mode fiber.
CIA Coax Interface Adapter
- Converts Artist panel port from CAT5 to 75ohm Caox and vice versa.
- Adapts Artist matrix port to existing infrastructure.
- Useful for OB-vans and mobile applications.
- Supports distances up to 500 m (0.3 miles) using 0.8/4.9 video cable.
DCA-1000 Coax Expander
- Expands the possible length of coax links.
- Doubles the standard maximum distance of Coax link between Artist control panel and Artist frame from 500 meters (0.31 miles) to 1,000 meters (0.62 miles).
XLR-Patch 8 Port CAT5/XLR Patch
- Adapts RJ45 (CAT5) sockets to standard XLR 3-pin sockets.
Network Interfaces
NSA-001D
- Utilizes existing IP infrastructures for 1000 and 1100 series intercom panels.
- Handles all bi-directional signal conversion between AES3 and AES67.
- Plug-and-play device with multiple mounting options.
- Power can be supplied externally or via PoE.
- Convenient LEDs indicate system status.
- Simplifies cabling in Artist systems.
NSA-002A
- Handles bi-directional signal conversion between analog signals and AES67.
- Plug-and-play device with multiple mounting options.
- Connects Bolero wireless intercom system to any 4-Wire Analog.
- Power is provided internally or via PoE.
- Convenient LEDs indicate system status.
Connect DUO IPx2
- Combines 2 independent analog POTS telephone hybrids or VoIP audio codecs (G.711 or G.722) in a half-rack/1RU device.
- Enables dialing, making, and receiving calls to/from any PSTN, VoIP, or mobile phone directly or via connected SmartPanel.
- Advanced signal processing ensures optimal audio quality.
- Automated echo cancelling suppresses line echoes from both analog lines and callers’ phones.
- Features Automatic Gain Control (AGC) and noise reduction expander.
- Establishes connections using standard SIP protocol and SIP Direct mode if no SIP server is available.
CONNECT VoIP IPx16
- Allows independent VoIP audio codecs
- Max 16 channels G.711, G.722
- Max 8 channels OPUS
- 1RU design.
- Enables dialing, making, and receiving calls to/from any VoIP or mobile phone directly or via connected SmartPanel.
- Establishes connections using standard SIP protocol and SIP Direct mode if no SIP server is available.
Connect Trio
- Combines the following in a half-rack/1RU device:
- 2 independent analog POTS telephone hybrids.
- ISDN BRI/S0 interface with 2 independent ISDN B-channels.
- 2 independent VoIP audio codecs.
- Saves rack space and eliminates the need for additional equipment.
- Provides enhanced flexibility for intercom installations.
- Enables dialing, making, and receiving calls to/from PSTN, VoIP, ISDN, mobile phones, and G.711/G.722 reporter codecs.
- Allows remote key panel access via ISDN when used with Artist and Tango intercom systems.

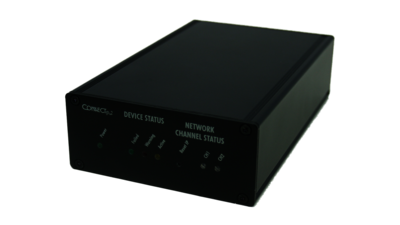

Connect IPx2
- Smaller version of the Riedel Connect IPx8 panel interface.
- 1/4 19“/1RU unit design.
- Connects up to 2 Riedel key panels with Artist and Tango matrices via IP-based networks.
Connect IPx8
- Offers high-quality audio-over-IP interfacing for intercom systems (EBU Tech 3347 compatible).
- 19”/1RU unit design.
- Connects up to eight Artist control panels or audio lines with the Artist-32/64/128 VOIP client card via IP-based networks.
- SIP-based interface converts AES3 or analog signals into compressed IP data and vice versa.
- Ensures a combination of high audio quality and low network traffic.
- Connects Riedel 1100, 1000, 2300, or 5000 series key panels with full functionality to Artist and Tango matrices via IP networks.
Connect AVBx8
- Converts 8 AES signals to AVB and vice versa.
- Compact design: 9.5”/1RU housing (Smart Rack SR12).
- Features 8 CAT5 ports, which connects up to 8 Riedel key panels.
- Supports 1- or 2-channel mode.
- Interfaces with Artist and Tango matrices via Ethernet-based LANs.
Connect AVB C8 AVB AES Interface
- Offers 8 AES-3 connections on BNC.
- Supports bi-directional AES for intercom panels.
- Supports unidirectional transport for broadcast AES-3.
Connect AVB A8 AVB Analog Audio Interface
- Offers 8 analog inputs and outputs on RJ45 connectors.
Radio Interfaces

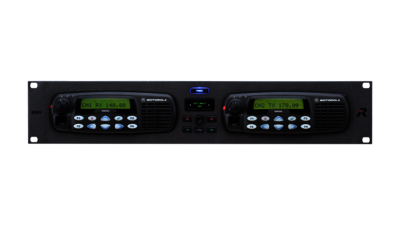

RiFace G2 – Universal Radio Interface
- Connects wired communication systems with walkie-talkie style radio systems.
- 19”/2RU design.
- Includes 1 or 2 user-provided two-way radios.
- Features processor logic to control the radios.
- Fast and easy setup and operation.
- Can operate as a stand-alone radio repeater.

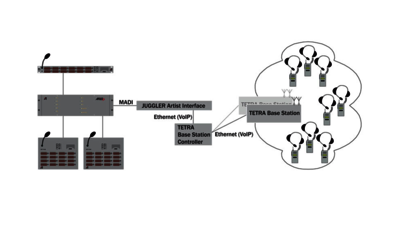

JUGGLER Integrated TETRA Radio System for Artist Intercoms
- Integrates TETRA digital trunked radio networks into wired intercom matrix.
- Provides intelligent integration between TETRA radio groups and Riedel Artist intercom ports.
- Allows calls from any Artist port/group/conference to up to 64 individual TETRA radio groups and vice versa.
- Connects TETRA Base Station Controller to Riedel Artist system via MADI.
- Compatible with any TETRA-standard compliant subscriber.
